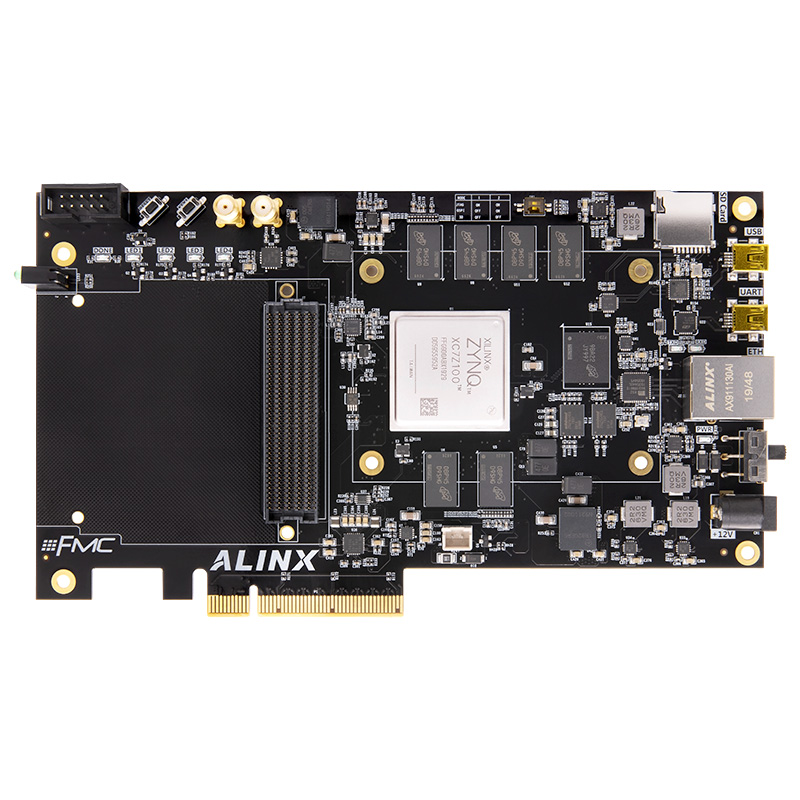

ALINX AX7450: Zynq-7000 SoC XC7Z100 FPGA Development Board

ALINX AX7450: Zynq-7000 SoC XC7Z100 FPGA Development board, features embedded processing with Dual ARM Cortex-A9 core processors. The AX7450 industrial FPGA board includes all the basic components of hardware, and pre-verified reference designs, PCIe 2.0 x 8, Gigabit Ethernet, USB2.0, Uart, TF Card Slot, FMC Expansion Interface. The AX7450 FPGA Board is suitable for high-speed data exchange, data storage, video transmission processing, optical fiber communication, Ethernet communication, and industrial control, etc.


Key Features and Benefits

  • FPGA: Xilinx Zynq7000 FPGA, XC7Z100-2FFG900I
  • Embedded Dual-Core ARM Cortex-A9 Processor
  • PS Terminal 1GByte DDR3, 32bit, 1600Mbps
  • PL Terminal 2GByte DDR3, 32bit, 1066Mbps
  • 64MByte QSPI Flash, 8GByte EMMC
  • Standard FMC LPC Interface, 1 * Gigabit Ethernet
  • PCIe 2.0 x 8 Host, Single Channel up to 5G Baud
  • Integrated USB 2.0, UART, JTAG, SD Card Slot and Other Common Interfaces
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
  • Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started With

What's Included

  • 12V 3A DC Adaptor
  • AX7450 FPGA Development Board
  • Heatsink (Fixed on the Board)
  • Mini USB Cable, 2 Pics
  • TF Card and Card Reader
