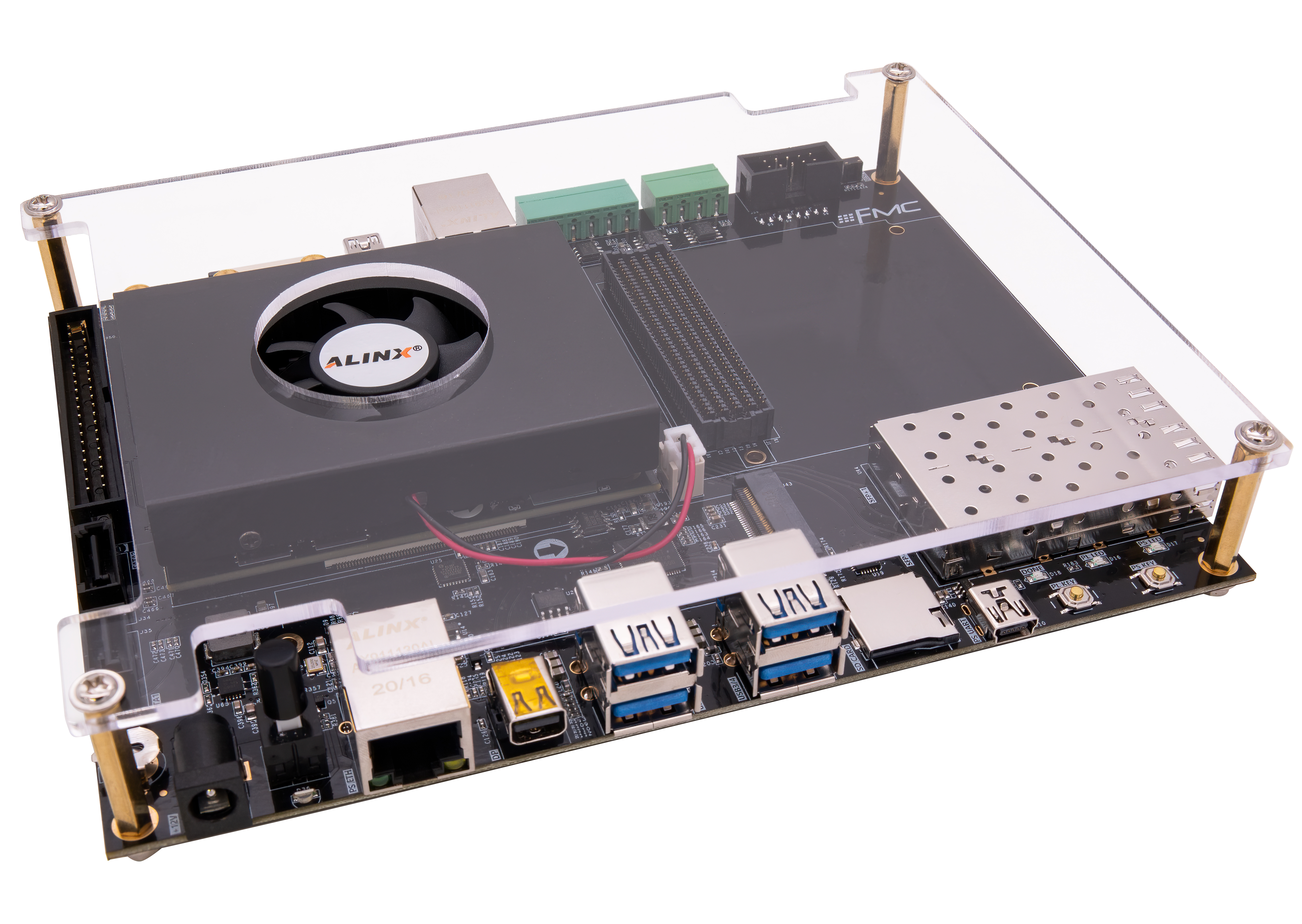

ALINX AXU15EGB with AMD Zynq UltraScale MPSoC FPGA Development board High-end Integrated De

ALINX AXU15EGB: AMD Zynq UltraScale+ MPSoC XCZU15EG FPGA Development board High-end Integrated Development Platform. “SOM ACU15EG module + Carrier Board”, which is convenient to use the SOM core board for secondary development. the SoM Core board is the smallest system, mainly composed of XCZU15EG-2SFFVB1156I + 5 DDR4 + 8GB eMMC + 64MB QSPI FLASH. The ALINX AXU15EG or AXU15EGB High-end Integrated Development Platform supports AMD Vitis-AI DPU, 10G optical fiber communication. Applied to Gigabit Ethernet, High-speed data exchange and transmission, Industrial Control, deep learning, AI artificial intelligence and cloud computing, 4K video transmission processing and aerospace processing.


Key Features and Benefits

  • FPGA: Zynq UltraScale+ MPSOC, XCZU15EG-2FFVB1156I
  • ARM Cortex™-A53 x4, Cortex-R5 x2, Mali™-400MP2 GPU
  • PS 4GB DDR4, 64bit, PL 2GB DDR4, 32bit
  • 8GB eMMC FLASH, 64MB FLASH
  • Standard FMC HPC Interface, Connect various FMC boards
  • 2 SFP+ Optical Fiber Interfaces, The Transmission Rate can be up to 12.5Gbps
  • NVME M.2 interface, used to connect M.2 SSD solid state drive (need to purchase)
  • MINI DP Output Interface, Supports 4K@30Hz or 1080P@60Hz
  • Integrated MIPI Camera, Gigabit Ethernet, USB 3.0, UART, JTAG and Other Interfaces
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)

What's Included

  • 12V 3A DC Adaptor
  • ALINX AXU15EGB FPGA development board
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • Customized 30W Fan (Fixed on the Board)
  • Mini USB Cable
  • TF Card and Card Reader
  • Transparent Protection Board (Fixed on the Board)
