ALINX AX7A035 with AMD Artix FPGA Development Kit Board

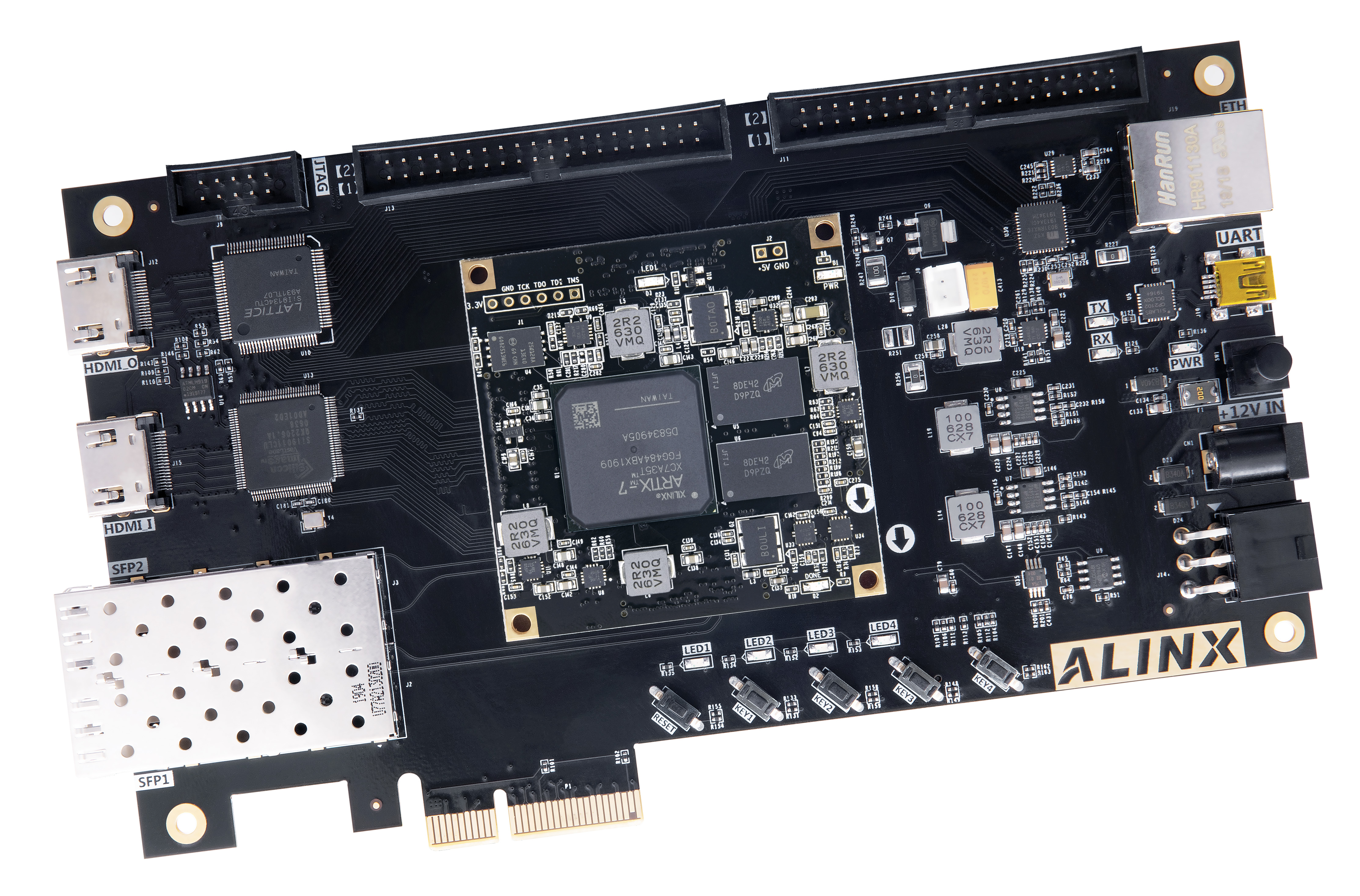

ALINX AX7A035: with an AMD Artix 7 XC7A35T FPGA Development board, “SOM AC7A035 module + Carrier Board”, which is convenient to use the SOM core board for secondary development. It features the leading system performance per watt Artix 7 family to get you quickly prototyping for your cost sensitive applications. The AX7A035 industrial FPGA board includes all the basic components of hardware, and pre-verified reference designs, the carrier board with PCIe 2.0, 2SFP, HDMI Input and Output, JTAG, SD Card Slot, 2*40-Pin Connectors (expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module). The AX7A035 FPGA Board is suitable for PCIe communication and data processing, video image transmission processing, fiber optic Ethernet transmission, etc.


Key Features and Benefits

  • FPGA: AMD Artix 7, XC7A35T-2FGG484I
  • 1GByte DDR3, 32bit, 800Mbps, 16MByte QSPI Flash
  • 2*SFP Fiber Interfaces, Each up to 6.6Gbps
  • PCIe x2 Interface, Single Channel up to 5Gbps
  • Ethernet Interface, EEPROM 24LC04
  • HDMI Input and Output Interface, Supports 1080@60Hz, 3D Output
  • USB Uart Interface, Micro SD Card Slot, 2*40-pin Expansion Connectors
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
  • Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started With

What's Included

  • 12V 3A DC Adaptor
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • AX7A035 FPGA Development Board
  • Heatsink (Fixed on the Board)
  • Mini USB Cable
  • PCIe Protection Fence
