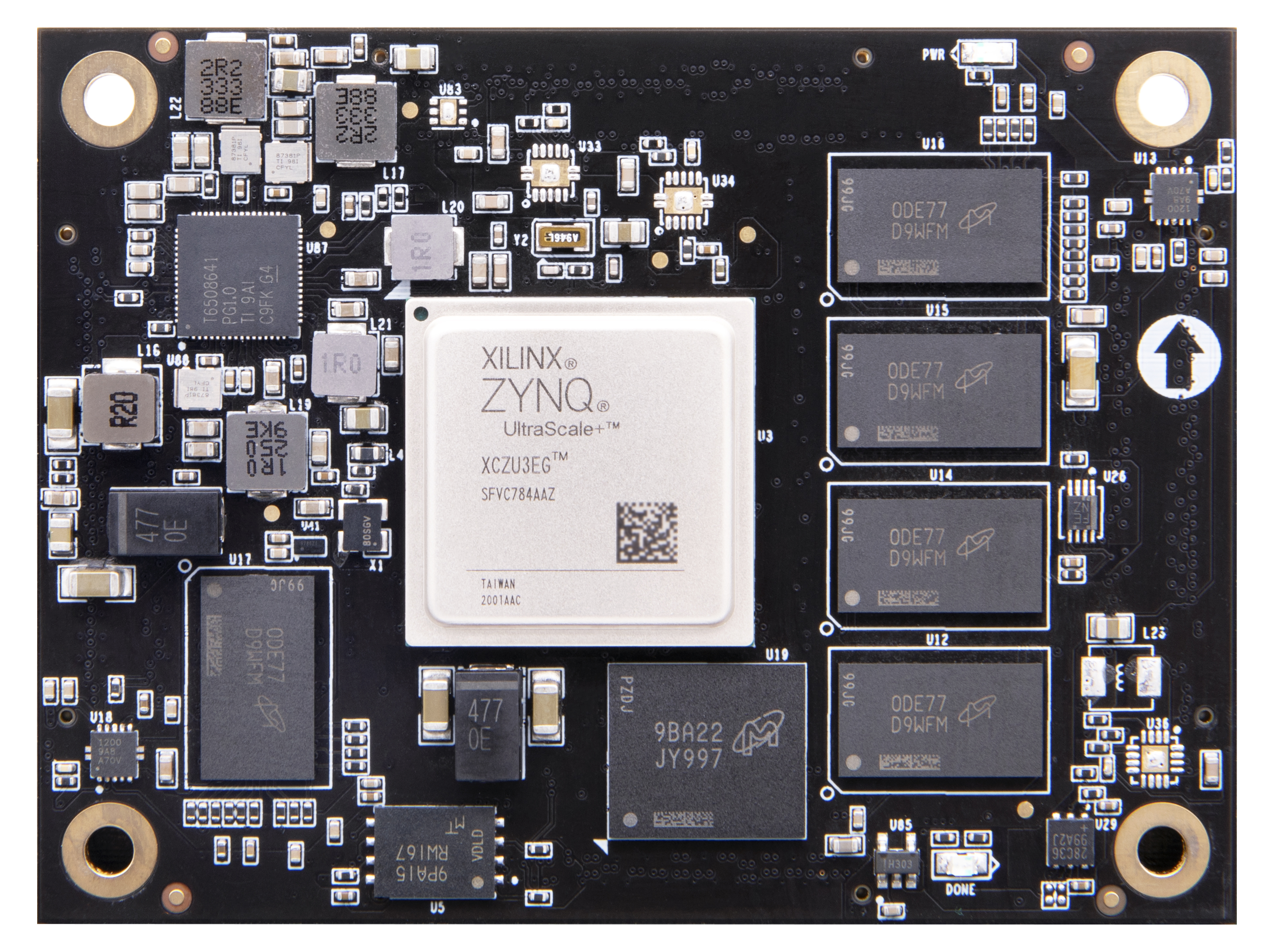

ALINX FPGA SOM ACU3EG with AMD Zynq UltraScale+ MPSoC XCZU9EG Industrial Grade Module

ALINX SoM ACU3EG, based on the AMD Zynq UltraScale+ MPSoC XCZU3EG Industrial Grade Module is the smallest system, mainly composed of XCZU3EG-1SFVC784I + 5GB DDR4 + 8GB eMMC + 32MB FLASH. 4*120 Pin Panasonic Connectors, Reserved expansion IOs (PS PCIe Gen2 x 4; 2 x USB3.0; Sata 3.1; Display Port; 4x Tri-speed Gigabit Ethernet; PL IO: 96 HP I/Os, 84 HD I/Os)


Key Features and Benefits

  • XCZU3EG- 1SFVC784I
  • ARM Quad-core Cortex™-A53 1.2GHz
  • ARM Dual-core Cortex-R5 500MHz
  • Mali™-400MP2 GPU
  • PS 4GB DDR4, 64bit
  • PL 1GB DDR4, 16bit
  • 8GB eMMC
  • 32MB FLASH
  • Logic Cells 154K
  • PS PCIe Gen2 x4
  • 2x USB3.0, Sata 3.1, DisplayPort
  • 4x Tri-speed Gigabit Ethernet
  • PL IO: 96 HP I/Os, 84 HD I/Os
  • Industrial Grade, -40°C to 85°C
  • Size: 3.15x2.36 inch

What's Included

  • ALINX SoM ACU3EG MPSoC Module
