Avnet PicoZed FMC Carrier Card V2

by: Avnet

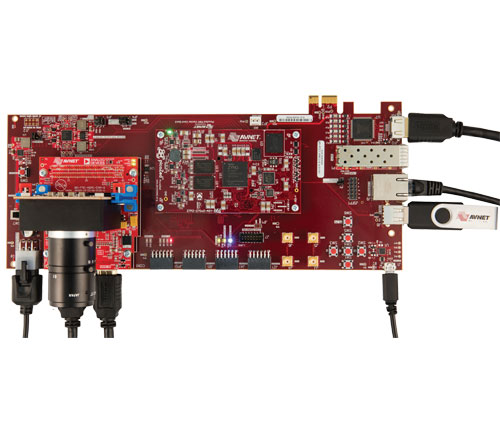

The PicoZed™ FMC Carrier Card V2 is the 2nd generation FMC Carrier supporting the PicoZed System-on-Module. This Carrier supports development of PicoZed-based designs with a platform containing all the necessary interfaces and I/O expansion required for the PicoZed family of SOMs. The carrier card provides connector interfaces for the on-module Gigabit Ethernet PHY and USB PHY, and also supports common processor system interfaces including μSD card and USB-UART. A majority of the PicoZed’s programmable logic I/O are made available through an LPC FMC connector. In addition, an HDMI output port and several peripheral module connectors are included. The four serial transceivers on the 7015 and 7030 SOMs are allocated to a x1 PCIe Gen2 card edge interface, the FMC connector, a SFP+ cage, and a general purpose SMA interface.

Key Features and Benefits

  • microSD card socket with 8GB microSD
  • Clock Synthesizer configuration EEPROM

What's Included

  • 12V AC/DC international supply
  • 8 GB microSD card preloaded with Wind River Pulsar Linux (with SD adapter card)
  • ATX-to-6P Mini-Fit adapter
  • Mounting hardware for SOM
  • PCIe bracket
  • PicoZed FMC Carrier Card V2
  • Quick Start instructions (board and Pulsar)
  • USB A to micro-B cable
