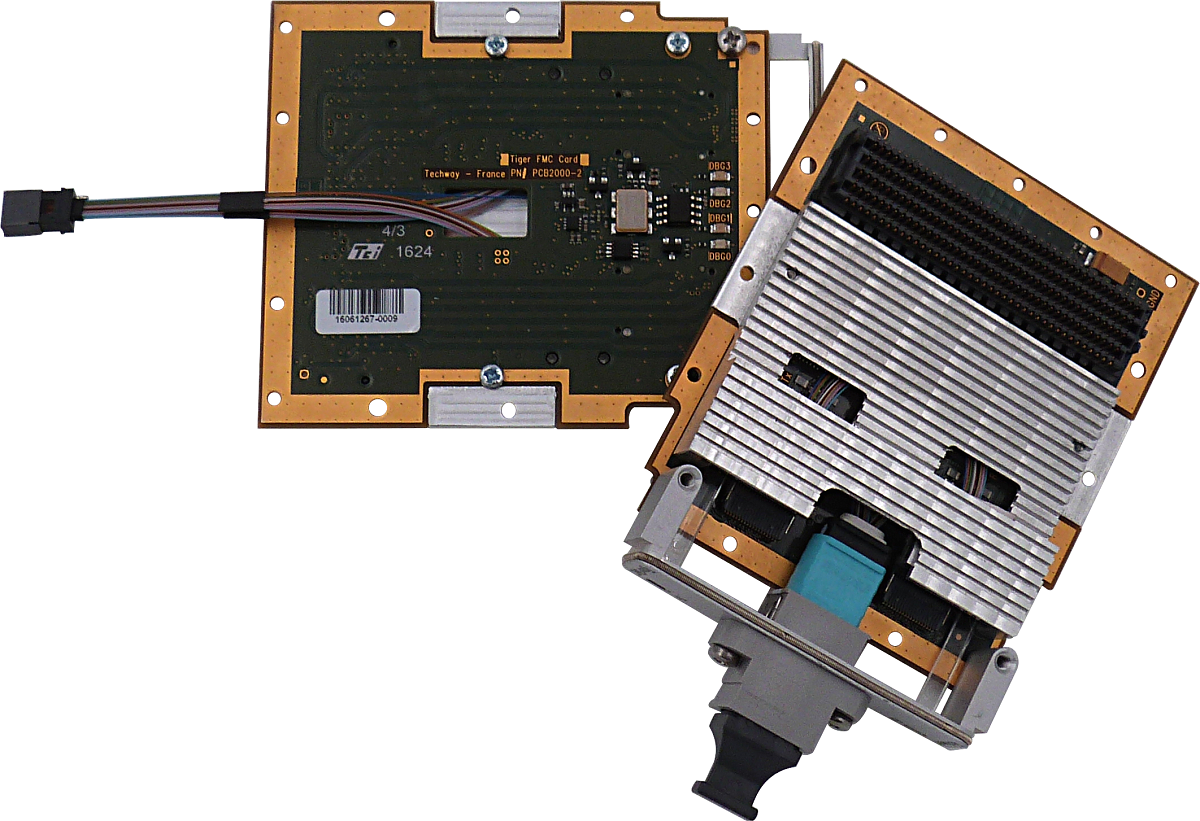

TigerFMC - High-speed high-density optical communication up to 336 Gbps

High-speed optical communications have become the new standard of real-time data-intensive integrated systems. TECHWAY brings you a very compact and efficient solution with the TigerFMC optical FMC product range.

Taking advantage of the SAMTEC’s FireFly™ Micro Flyover System™ optical modules, TigerFMC solutions offer an overall throughput up to 336 Gbps. FireFly™ is the first interconnect system that gives designers the flexibility of using micro footprint optical and copper interconnects interchangeably with the same connector system.

All the TigerFMC mezzanine cards can be easily integrated into existing systems such as VPX boards, or into brand-new architectures. Compliant with VITA 57.1 and VITA 57.4 standards, they fit all FMC and FMC+ carrier boards.

Available in commercial or industrial version, these optical FMC are compliant with both air and conduction cooled environments.


Key Features and Benefits

  • VITA 57.1 and 57.4 compliant
  • Up to 12 full duplex links
  • Up to 25 Gbps per link
  • Front connection : MTP24-M or MTP12-M connectors
  • Programmable oscillators
  • Standard temperature : 0°C to 70°C
  • Extended temperature : -40°C to 85°C

What's Included

  • Air or conduction cooled
  • Easy-to-use : No specific firmware required
  • Protocol agnostic
  • Ready-to-use : 100% FMC and FMC+ compliant
  • SAMTEC FireFly(TM) technology
  • Suitable for legacy issue
