ALINX FPGA SOM AC7A035: with AMD Artix 7 Module

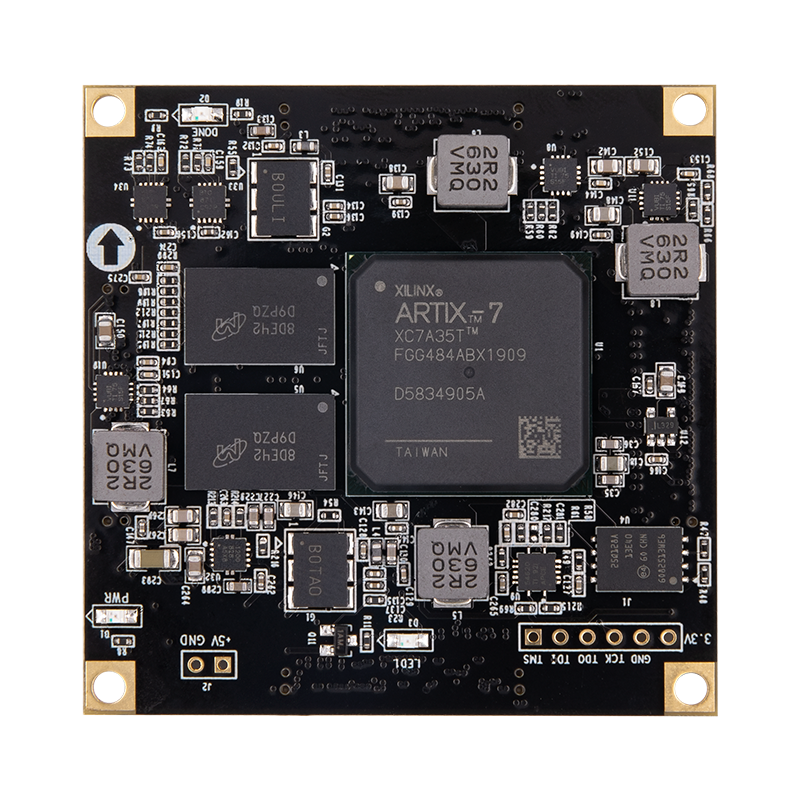

ALINX SoM AC7A035, based on the AMD Artix 7 XC7A35T-2FBG484I, composed of FPGA + 2 DDR3 + QSPI FLASH, including all the basic components of hardware. It is suitable for high-speed data communication, video image processing, high-speed data acquisition etc.


Key Features and Benefits

  • FPGA: XC7A35T-2FGG484I
  • 1GB DDR3, 32bit
  • 16MB FLASH
  • Logic Cells 33,280
  • Look-Up Tables (LUTs) 5,200
  • CLB Flip-Flops 41,600
  • DSP Slices 90
  • Block RAM 1,800kb
  • High-speed GTP x 4, PCIE 2.0 x 4
  • 146 IOs, 100 Voltage Adjustable IOs
  • 48 Pairs LVDS
  • Working Temperature -40 ℃ to 85 ℃
  • Size: 2.36 inch * 2.36 inch
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
  • Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started With

What's Included

  • ALINX SoM AC7A035 Industrial Grade Module
