Spartan-6 FPGA Connectivity Kit

  • Price: $1,995
  • Part Number: DK-S6-CONN-G
  • Lead Time: 1 Week
  • Device Support:
Overview

Product Description

The Spartan®-6 FPGA Connectivity Kit is a complete development and demonstration platform for designing with standards based protocols – PCIe®, Ethernet, implementing low-cost protocol bridging, and providing higher efficiency alternative to LVDS communication in multiple market segments.

Provided with each Spartan-6 FPGA Connectivity Kit is a full seat of Production Netlist of Northwest Logic Packet DMA IP Core for implementing high speed and maintaining efficient data transfer on the PCIe link.

The Spartan-6 FPGA Connectivity Kit enables faster design development and provides a jump-start through the connectivity targeted reference design included in it.


Key Features & Benefits

  • Hardware, design tools, IP, and pre-verified reference designs
  • Providing higher efficiency alternative to LVDS communication in multiple market segments

Featured Xilinx Devices

Featuring the Spartan-6 XC6SLX45T-FGG484-3 FPGA

Logic Cells 43,661
Memory (Kb) 2,088
DSP Slices 58
Maximum I/O Pairs 348
spartan-6-bk-chip
Hardware

Board Features

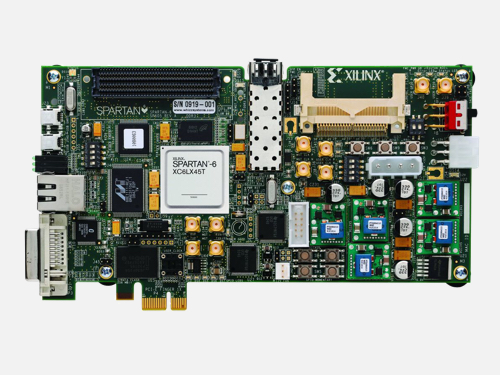

Featuring the Spartan-6 SP605 Evaluation Board

spartan-6-sp605-board

Featured Xilinx Devices

Featuring the Spartan-6 XC6SLX45T-FGG484-3 FPGA

Logic Cells 43,661
Memory (Kb) 2,088
DSP Slices 58
Maximum I/O Pairs 348
spartan-6-bk-chip

What's Inside

SP605 Evaluation Board

Featuring the Spartan-6 XC6SLX45T-FGG484-3 FPGA

ISE® Design Suite: Embedded Edition

Device-locked to the Spartan-6 LX45T FPGA

Ethernet Cable

SMA Cable

Micro USB Cable

Mini USB Cable

Power Adapter

Power Cord

Documentation
