Virtex UltraScale+ HBM VCU128 FPGA Evaluation Kit

by: AMD

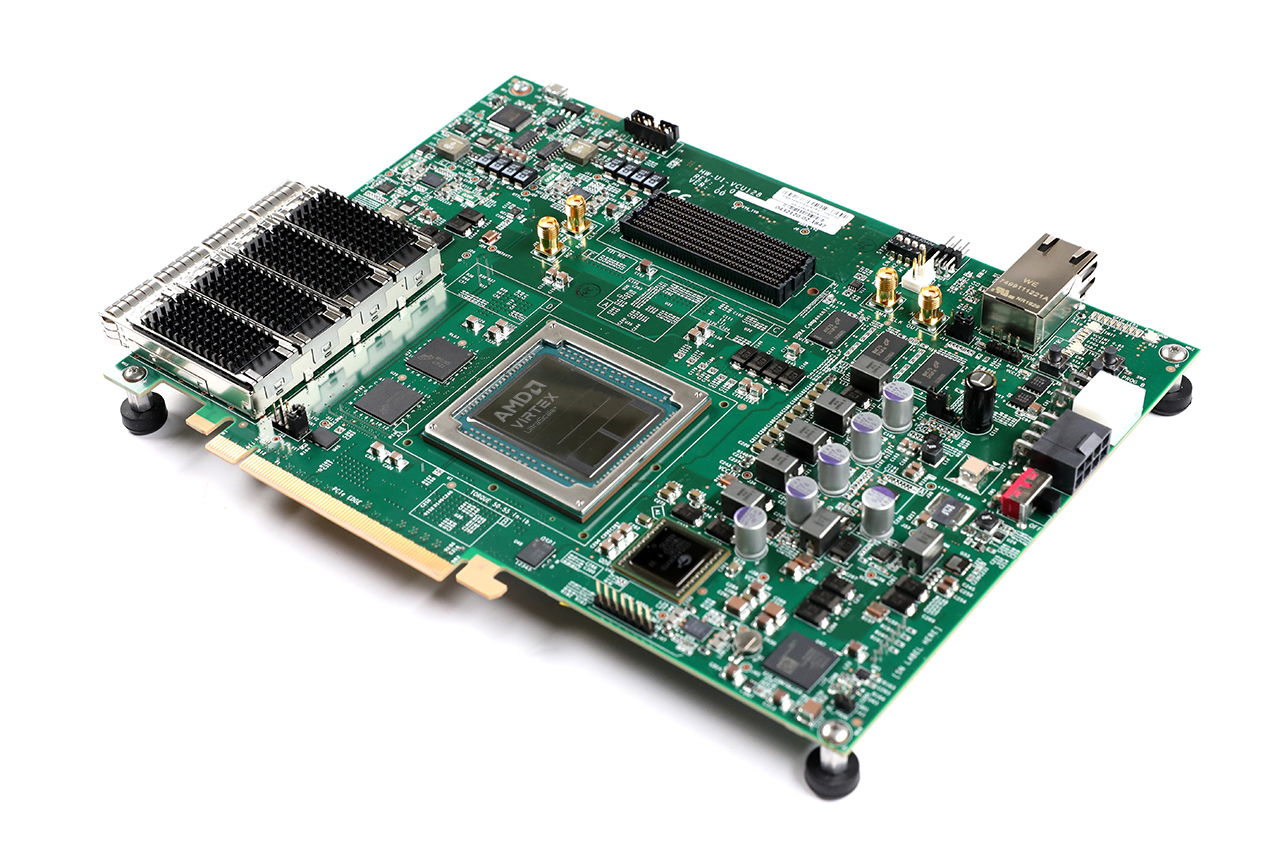

The VCU128 board incorporates the all new AMD Virtex UltraScale+ VU37P HBM FPGA that utilizes stacked silicon interconnect to add HBM die next to the FPGA die on the package substrate.


Product Description

The VCU128 board incorporates the all new AMD Virtex™ UltraScale+™ VU37P HBM FPGA that integrates 8GB of HBM DRAM adjacent to FPGA die to enable massive memory bandwidth and much smaller PCB footprint. Virtex UltraScale+ HBM FPGAs alleviate bandwidth bottlenecks and power consumption associated with using parallel memories, like DDR4, in compute, database, and network acceleration applications.

The VCU128 evaluation kit is optimized for quickly prototyping applications using Virtex UltraScale+ HBM FPGAs.

Key Features & Benefits

Massive Memory Bandwidth for compute intensive applications

  • 8GB of integrated HBM
  • Up to 460GB/s of HBM bandwidth
  • Multiple external memory interfaces (RLDRAM3, QDR-IV, DDR4)

Flexible connectivity for broad applications

  • Quad 28.12Gb/s QSFP28 interfaces
  • PCIe® Gen3 x16 & Gen4 x8
  • VITA 57.4 FMC+ interface
  • 10/100/1000Mb/s Ethernet

Featured AMD Devices

Featuring the Virtex UltraScale+ XCVU37P-L2FSVH2892E FPGA

System Logic Cells (K) 2,852
DSP Slices 9,024
Block RAM + UltraRAM (Mb) 340.9
GTY 28.12Gb/s Transceivers 96
HP I/O 624

Product Information


Board Features

Featuring the Virtex™ UltraScale+™ XCVU37P-L2FSVH2892E FPGA

Board Specifications Value
Length 9.5 inch (24.13 cm)
Height 7.53 inch (19.14 cm)
Thickness (+/-5%) 0.061 inch (0. 1549 cm)
Operating Environmental Temperature 0C to +45C
Storage Environmental Temperature -25C to +60C
DDR4 Component 4.5 GB – 5 x (512 Mb x 16)
QDR4 Component 144 Mb – 1 x (4 Mb x 36)
RLD3 Component 288 MB – 2 x (1.125 Gb x 36)
Communications & Networking
QSFP28 Optical 4
Ethernet Port 2
PCIe® Gen3 x16 or Gen4 x8 1
DIP Switches Yes
LEDs Yes
Push Buttons Yes
Expansion Connectors
FMC+-HSPC Connector 1
Control & I/O
12V Wall Adapter Yes
ATX Power Compatible Yes
What’s Inside

What's Inside the Box

Featuring the Virtex™ UltraScale+™ XCVU37P-L2FSVH2892E FPGA




Filter Documentation

Step 1: Board Revision

Step 2: Tools Version

Step 3: Show Documentation

Click to update search results table
Tools & IP

Design Tools

Name Description License Type
Vivado Design Suite: System Edition The AMD Vivado™ Design Suite is a revolutionary IP and system centric design environment built from the ground up to accelerate the design for all programmable devices. Node locked & device-locked to the Virtex™ UltraScale+™ XCVU37P FPGA, including 1 year of updates.

Intellectual Property

Name Description License Type
Memory Interface Generator (MIG) MIG is a free software tool used to generate memory controllers and interfaces for AMD FPGAs. Included

Additional Tools, IP and Resources

Provider Name Product Category Item Description
Red Hat Operating System Fedora Fedora-20 is used for UltraScale+™ FPGA TRDs.
Open Source Software Tool TeraTerm One of many possible terminal emulators used for serial connection from your PC to the evaluation kit.
