Versal HBM Series VHK158 Evaluation Kit

by: AMD

The VHK158 evaluation kit, equipped with the AMD Versal™ HBM VH1582 adaptive SoC, offers convergence of memory, compute, and connectivity with 32G HBM and 112G PAM4 transceivers.

Buy

WARNING: This product can expose you to chemicals including Lead and Lead Compounds (Pb), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov.

Overview

Product Description

The VHK158 evaluation kit is an evaluation platform for the Versal™ HBM series VH1582 device designed to keep up with the higher memory needs of compute intensive, memory bound applications, providing adaptable acceleration for data center, wired networking, test & measurement, and aerospace & defense applications. The VHK158 board’s primary focus is to enable demonstration and evaluation of the VH1582 silicon and support customer application development


Target Applications

Data Center

  • Machine Learning Acceleration ​
  • Compute Pre-Processing and Buffering ​
  • Database Acceleration and Analytics

Wired Networking

  • Network Security Acceleration ​
  • Search and Look-Up System
  • 800G Switch / Router

Test & Measurement

  • Network Testers
  • Packet Capturing System
  • Data Capturing System

Aerospace & Defense

  • Radar
  • Data & Signal Processing System
  • Secure Communication System

Key Features and Benefits

  • 32G HBM memory
  • 112G PAM4 transceivers
  • QSFP28 and QSFP-DD connectors for optical communication
  • PCIe® Gen5x8 and Gen3/4 x16 support
  • 32 GB (2x 16 GB), 72-bit DDR4 DIMM
  • FMC+ connector with 8 GTYPs and 68 user-defined signals
  • System Controller with BEAM (web-based GUI user interface application)

Featured AMD Devices

Featuring the Versal HBM XCVH1582-2MSEVSVA3697 Adaptive SoC

DSP Engines 7,392
System Logic Cells (K) 3,837
LUTs 1,753,984
HBM DRAM 32 GB
HBM Bandwidth 819.2 GB/s
Application Processing Unit Dual-core Arm® Cortex®-A72
Real-Time Processing Unit Dual-core Arm Cortex-R5F
GTYP Transceivers (32.75 Gb/s) 681
GTM Transceivers (56G (112G)) 20 (10)
CCIX & PCIe® w/DMA (CPM5) 2 x Gen5x8, CCIX
PCI Express  (PLPCIE5) 8 x Gen5x4
100G Multirate Ethernet MAC 4
600G Ethernet MAC 1
400G High-Speed Crypto Engine 2

1.  16 GTYP transceivers are dedicated to CPM5 for PCI Express use.

VHK158 chip

Product Information

Specifications

Board Features

Featuring the Versal™ HBM XCVH1582-2MSEVSVA3697 Adaptive SoC

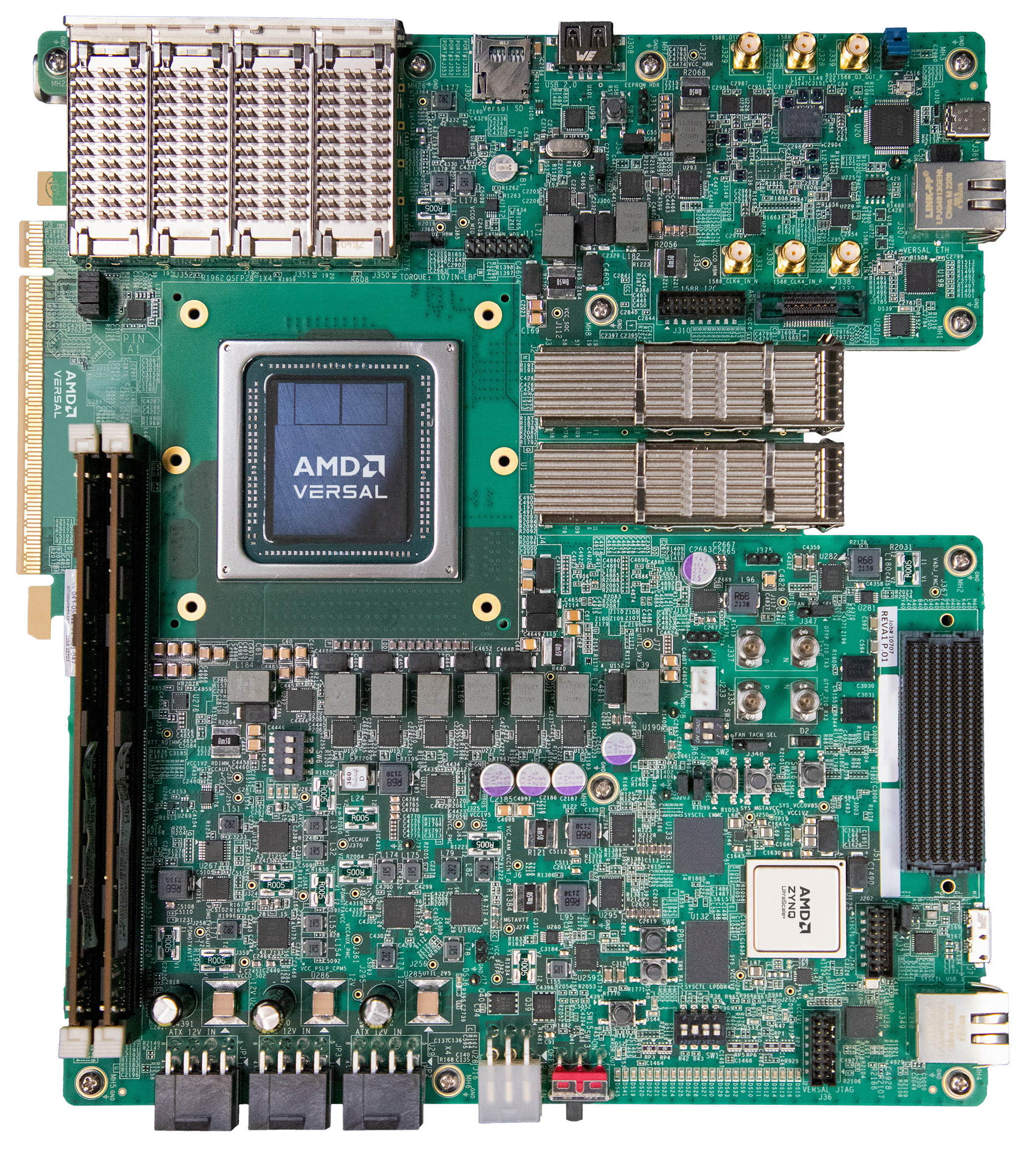

VHK158 board
Board Specifications Value
Height 8.649 inches (24.651 cm)
Length 9.705 inches (21.961 cm)
Thickness 65.56 mil ±8% (1.6652 mm ±8%)
PCIe® Slots PCIe Gen5 x8, Gen3/4 x16
Operating Environmental Temperature 0C to +45C
Storage Environmental Temperature -25C to +60C
Configuration
JTAG  Yes
OSPI Yes
MicroSD Yes
Memory
DDR4 DIMM 32 GB (2x 16 GB), 72-bit @ 3200 Mb/s
MicroSD Socket (Versal device) Yes
Control I/O
User Pushbuttons 2
DIP Switches 4
User LEDs 4
SYSMON Yes
System Controller Yes
PMBUS Yes
Expansion Connectors
VITA 57.4 FMC+ 8 GTYPs, 68 user-defined signals
Communications & Networking
USB JTAG 1
USB C 1
RJ-45 Tri-Speed Ethernet Connectors
QSFP28 4
QSFP-DD 2
Clocking
Programmable DDR4 Clocks 2
PCIe Reference Clock 1
Programmable GT Clocks 12
Programmable HBM Clocks  2
Programmable 1588 eCPRI (SMA Connector) 6
Programmable System Controller 1
Power
180W (12V) Power Supply Yes
Power-on Reset Yes
What’s Inside

What's Inside the Box

Featuring the Versal™ HBM XCVH1582-2MSEVSVA3697 Adaptive SoC

What's inside the box

Resources

Documentation

Featured Documents

Filter Documentation

Step 1: Board Revision

Step 2: Tools Version

Step 3: Show Documentation

Click to update search results table
Tools

Design Tools

  • Vivado™ Design Suite: The EDA tool suite to create projects for the VHK158 board. Node-locked and device-locked to the Versal™ HBM XCVP1582 device, with one year of updates.
  • Vitis™ Unified Software Platform: The full suite of tools for developing embedded software, debugging Versal devices, and running targeted reference designs and example designs.

PetaLinux Tools, Board Support Packages, and Pre-Built Images

Getting Started

Get Started with VHK158

To jump-start development with the VHK158, visit the Wiki page.

  • Prep work
  • Board setup
  • Run the PetaLinux BSP pre-built image
Get Started
