KRM-3Z7030

Overview

Product Description

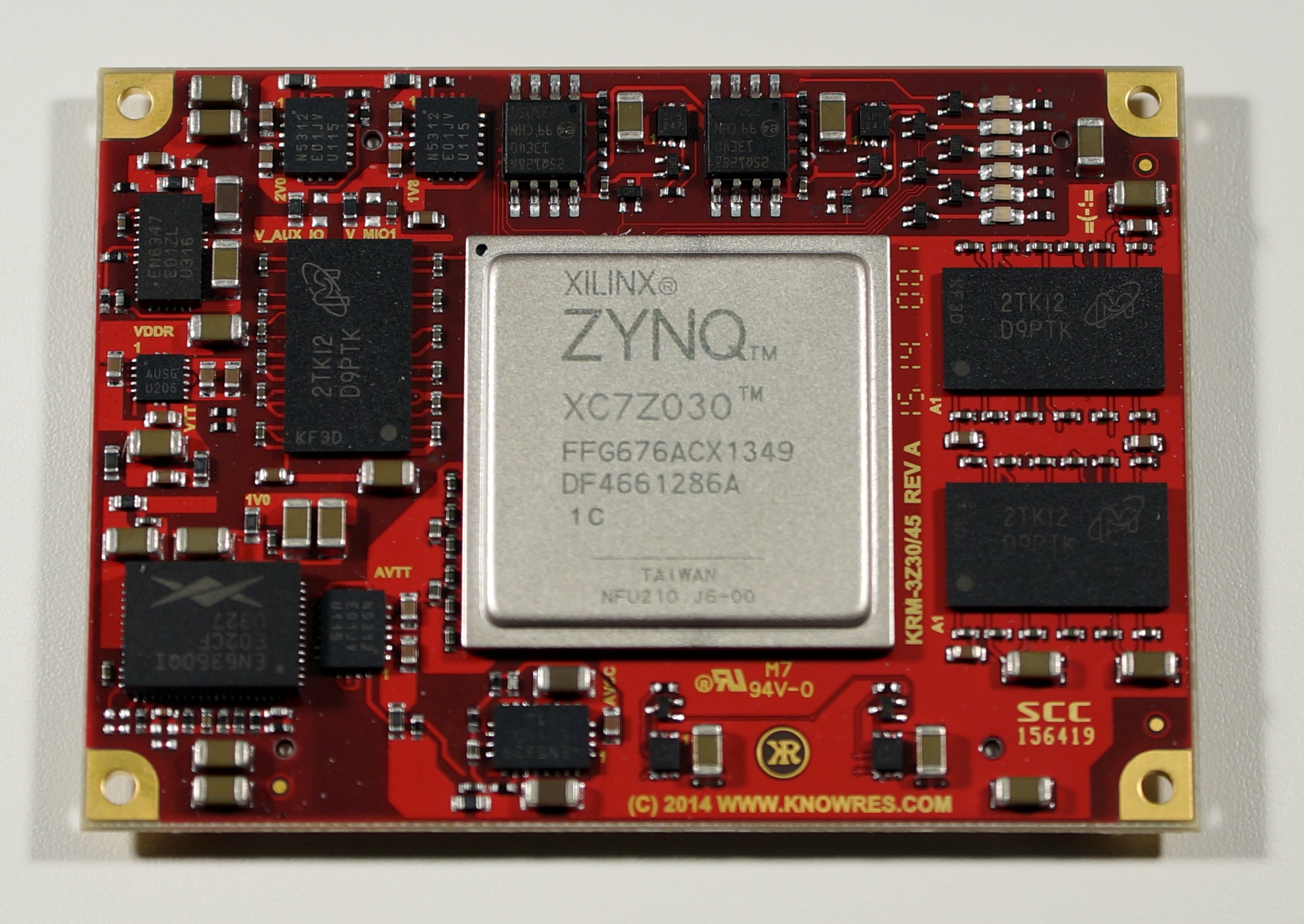

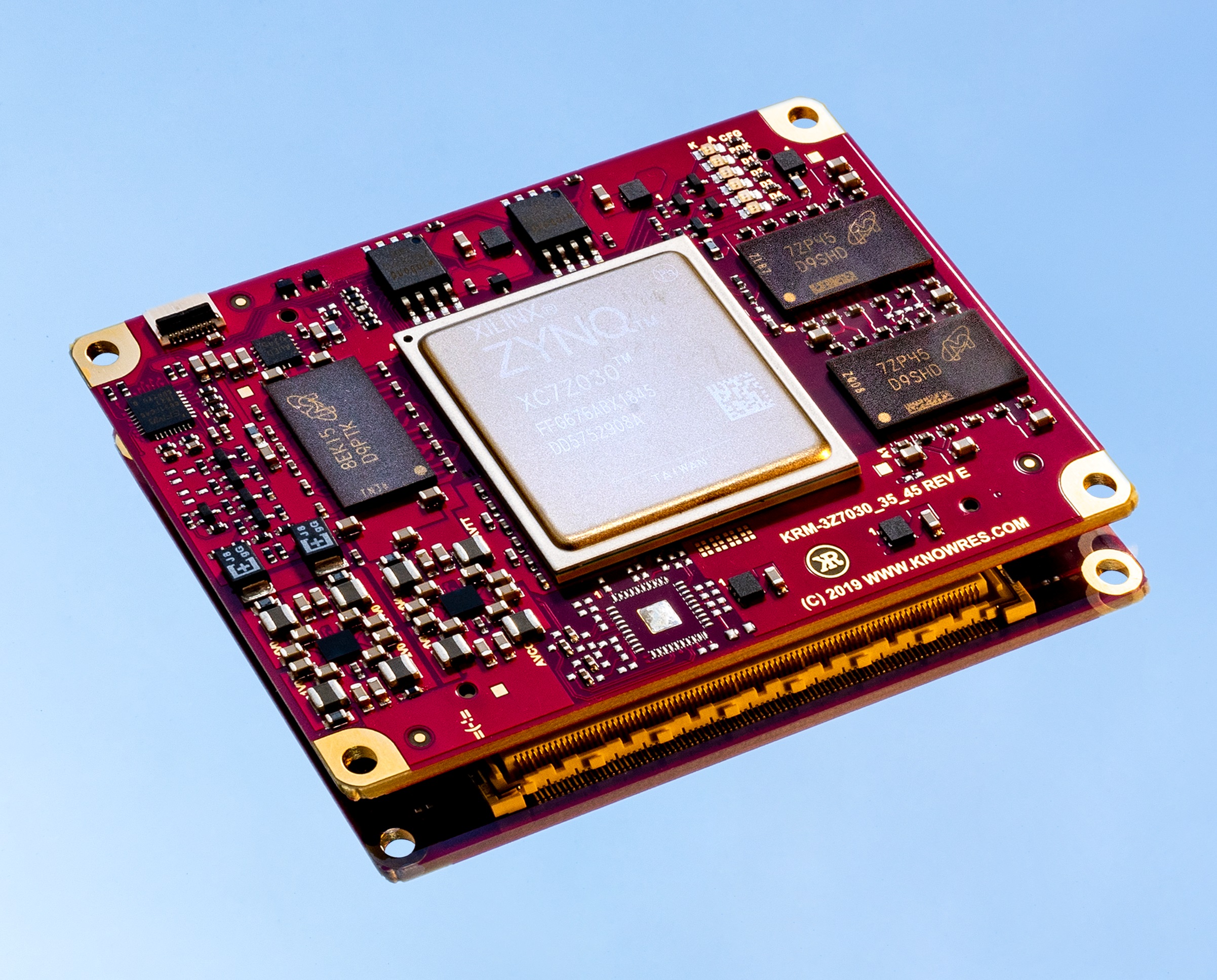

The KRM-3Z7030 is a versatile Zynq based System on Module (SoM) with a 50mmx70mm form factor and virtually no special purpose pins => highest flexibility for user designs - PL 192 FPGA I/Os with user selectable bank voltages (4 Banks) - PS MIO 501 all signals available - MGT 4 Lanes to 12Gb + ext ref clock - 1GB DDR III PS Ram 256 MB DDR III PL RAM - DUAL QSPI 128Mb for CFG and user data - 33.333 MHz refclock - All local power generated on board - 4 user LED - Heat spreader solution available


Key Features and Benefits

  • 192 PL IO
  • 1GB PS DDRIII RAM
  • 256 MB PL DDRIII RAM
  • DUAL QSPI
  • FULLY ACCESSIBLE MIO 501
  • INDEPENDEND BANK VOLTAGES
  • SINGLE 3V3 Supply
  • optional HEAT SPREADER PLATE
  • 4 MGT lanes

What's Included

  • 1GB DDR III PS Ram
