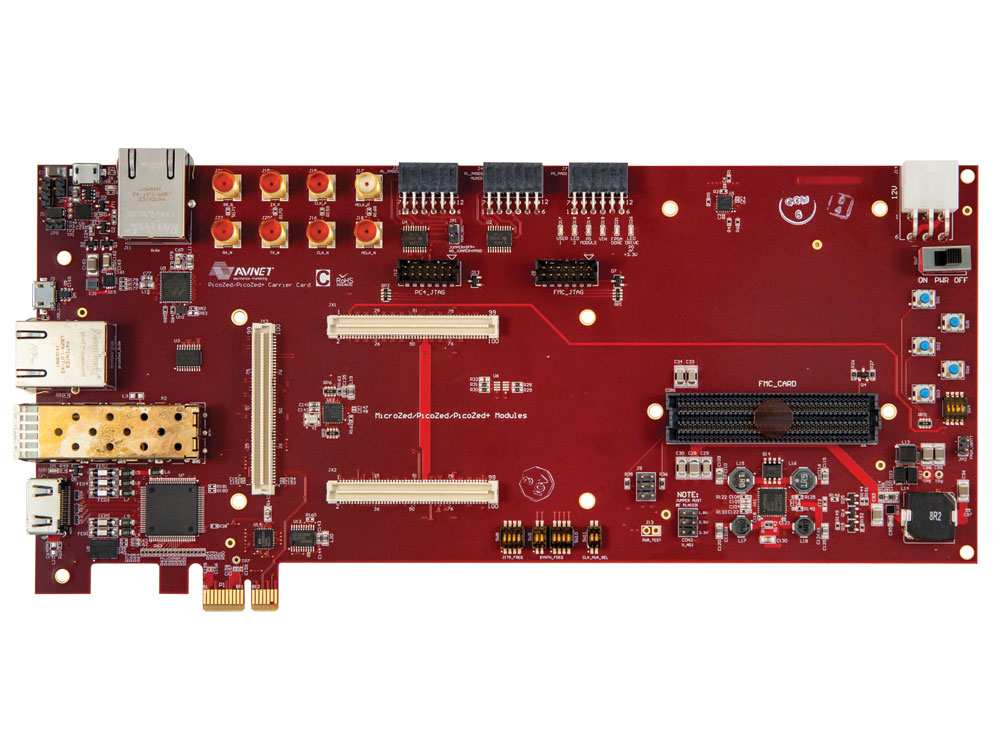

Avnet PicoZed Carrier Card

  • Price: $425
  • Part Number: AES-PZCC-FMC-G
  • Device Support:
  • Vendor: Avnet
  • Ecosystem Program Tier: Premier

Product Description

The PicoZed™ Carrier Card supports development of PicoZed-based designs with a platform containing all the necessary interfaces and I/O expansion required for the PicoZed System-on-Module. The carrier card provides connector interfaces for the on-module Gigabit Ethernet PHY and USB PHY, and also supports common processor system interfaces including uSD card and USB-UART. A majority of the PicoZed’s programmable logic I/O are made available through an LPC FMC connector. In addition, an HDMI output port, a second Gigabit Ethernet port, and several peripheral module connectors are included. The four serial transceivers on the 7015 and 7030 SOMs are allocated to a x1 PCIe Gen2 card edge interface, the FMC connector, a SFP+ cage, and a general purpose SMA interface.


Key Features and Benefits

  • uSD card socket
  • x1 PCIe Gen 2
  • SFP+ cage
  • SMA port for GTX/GTP
  • 10/100/1000 Ethernet connector
  • 10/100/1000 Ethernet PHY and connector
  • USB 2.0 connector
  • USB UART
  • FMC (Low Pin Count)
  • PS Pmod (Shared with eMMC)
  • PL Pmod (7015/20/30 only)
  • PL Pmod (7015/30 only)
  • HDMI output port
  • JTAG configuration port
  • Programmable clock mux
  • SMA reference clock input
  • User push buttons and LEDS
  • Adjustable bank voltage power supplies

What's Included

  • 12 V AC/DC power supply
  • PicoZed FMC Carrier Board
  • PicoZed mounting hardware
  • Quick start card
  • USB Adapter: Male Micro-B to Female Standard-A
  • microSD Card 4 GB
  • microUSB cable
