TySOM-2-FMC-QSFP

  • Part Number: TySOM-2-FMC-QSFP
  • Device Support:
  • Vendor: Aldec, Inc.
  • Program Tier: Member

Product Description

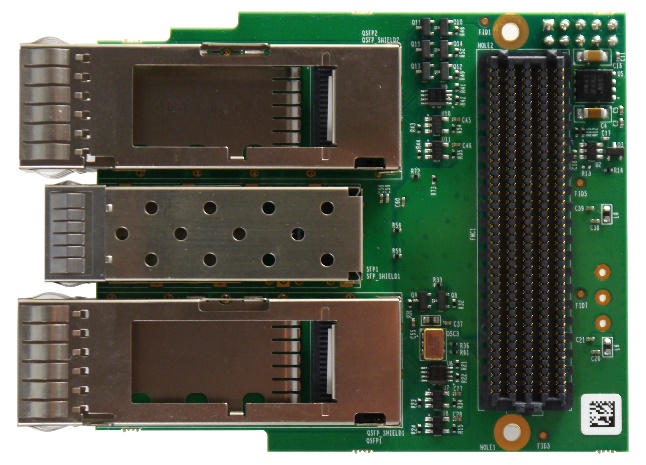

This serial connectivity FMC daughter board is designed to provide advanced serial data connectivity by having QSFP+ and SFP+ interfaces. This daughter board is compatible with the boards that support VITA 57.1-2010 FMC HPC connectors such as TySOM-2-7Z045, TySOM-2-7Z100 and TySOM-2A-7Z030, Xilinx ZC706 and etc.


Key Features and Benefits

  • 40× Gold pin
  • FMC HPC standard Connector
  • I2C
  • QSFP+
  • SFP+

What's Included

  • 1x SFP+ Connector
  • 1x user clock (125MHz connected to CLK bank)
  • 2x QSFP+ Connector
  • 2x user clock (125MHz and 156.25MHz connected to DP bank)
  • FMC HPC standard connector compliant with VITA 57.1-2010
