logiREF-ZGPU 2D/3D GPU Zynq Ref Design (ZC702)

  • Part Number: logiREF-ZGPU
  • Device Support:
  • Vendor: Xylon d.o.o.
  • Program Tier: Premier

Product Description

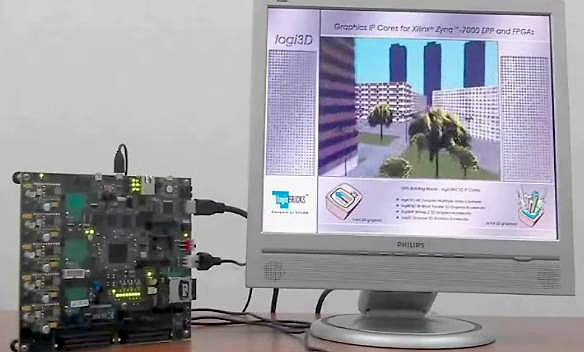

The 2D and 3D Graphics Processing Units (GPU) logicBRICKS reference design for Xilinx® Zynq®-7000 SoC is built on the Xilinx ZC702 Evaluation Kit. This pre-verified reference design provides system designers with everything they need to develop and display graphics on a PC monitor or other type display connected to the ZC702 kit. Xylon provides a functionally equivalent reference design for the ZedBoard™ development kit from Avnet Electronics Marketing.


Key Features and Benefits

  • Bare-metal software drivers available for non-OS use
  • Provided software drivers include standard Linux FrameBuffer driver, Linux Qt demos and OpenGL® ES* 1.1 API
  • Standard software drivers enable software developers to work fast and efficiently with popular graphic libraries, widget toolkits and familiar development tools
  • The evaluation hardware design is customizable
  • logicBRICKS graphics IP cores work with other popular operating systems running on the Zynq-7000 SoC: Linux, Android and Windows Embedded
  • Xilinx Vivado compatible

What's Included

  • Complete Linux OS image
  • Demo applications
  • Documentation
  • Evaluation logicBRICKS IP cores
  • Hardware design files prepared for Xilinx Vivado Design Suite
  • Software drivers
