Cmod S7: Breadboardable Spartan-7 FPGA Module

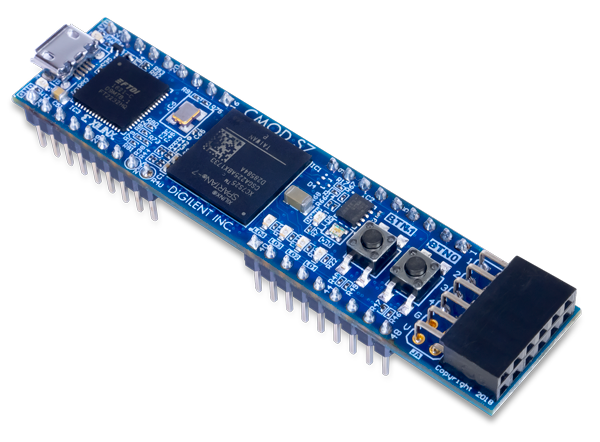

The Digilent Cmod S7 is a small, 48-pin DIP form factor board populated with 36 pins and built around a Xilinx Spartan-7 FPGA. The 32 FPGA digital I/O signals, 2 FPGA analog input signals, an external power input rail, and ground are routed to 100-mil-spaced through-hole pins, making the Cmod S7 well-suited for use with solderless breadboards. At just 0.7” by 3.05” inches, it can be loaded in a standard socket and used in embedded systems. The board also includes a programming ROM, clock source, USB programming and data transfer circuit, power supplies, LEDs, and buttons.

Key Features and Benefits

  • Xilinx Spartan-7 FPGA (XC7S25-1CSGA225C)
  • 3,650 slices containing four 6-input LUTs and 8 flip-flops
  • 1,620 Kbits of fast block RAM
  • Three clock management tile, each with a phase-locked loop and mixed-mode clock manager
  • 80 DSP slices
  • Internal clock speeds exceeding 450 MHz
  • On-chip analog-to-digital converter (XADC)
  • Programmable over JTAG and Quad-SPI Flash
  • Memory: 4 MB Quad-SPI Flash
  • Powered from USB or 5V external supply connected to DIP pin 24 (micro USB cable NOT included)
  • USB-JTAG programming circuitry
  • USB-UART bridge
  • 2 Buttons, 4 LEDs, 1 RGB LED
  • 1 Pmod connector, 8 total FPGA I/O
  • 48-pin DIP form-factor headers: 36 populated pins, 32 total FPGA I/O, 2 Single-ended 0-3.3V analog inputs to XADC

What's Included

  • Cmod S7
