Virtex 6 FPGA ML605 Evaluation Kit

by: AMD

The Virtex™ 6 FPGA ML605 Evaluation Kit includes all the basic components of hardware, design tools, IP, and a pre-verified reference design for system designs that demand high-performance, serial connectivity and advanced memory interfacing.

Overview

Important Notice:

This development kit has been discontinued per PDN advisory XCN19008 and is no longer offered for sale.  The solutions targeted for this product will not be updated moving forward with limited support available from AMD.

Product Description

Accelerate Your Designs - Right Out of the Box

The Virtex™ 6 FPGA ML605 Evaluation Kit includes all the basic components of hardware, design tools, IP, and a pre-verified reference design for system designs that demand high-performance, serial connectivity and advanced memory interfacing. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards.


Key Features & Benefits

  • Hardware, design tools, IP, and pre-verified reference designs
  • Enabling serial connectivity with PCIe Gen2x4, Gen1x8, 1 SFP, 1 SMA Pair, and UART
  • Supports embedded processing with MicroBlaze, soft 32bit RISC
  • 10/100/1000 Tri-Speed Ethernet (RJ-45)
  • DDR3 SO-DIMM (512 MB)
  • Expand I/O with the FPGA Mezzanine Card (FMC) interface

Featured AMD Devices

Featuring the Virtex 6 XC6VLX240T-1FFG1156 FPGA

Logic Cells 241,152
Memory (Kb) 14,976
DSP Slices 768
Maximum Transceivers (GTX) 24
Max User I/O 720
virtex-6-bk-chip

Product Information

Specifications

Board Features

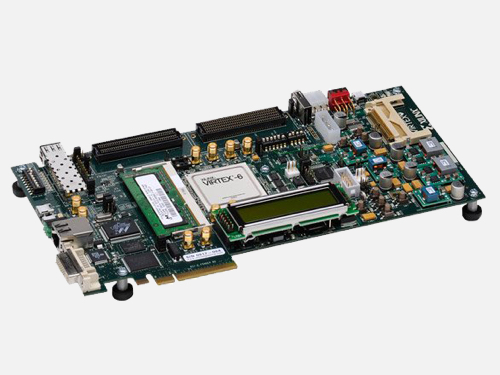

Featuring the ML605 Evaluation Board

virtex-6-ml605-board
What's Inside

What's Inside

ML605 evaluation board

Featuring Virtex 6 XC6VLX240T-1FFG1156 FPGA

ISE™ Design Suite: Logic Edition

Device locked to the Virtex 6 LX240T FPGA

Mini USB Cable

Ethernet Cable

Power Cord

Power Adapter
