UltraScale MPSoC Architecture

The Right Engines for the Right Tasks

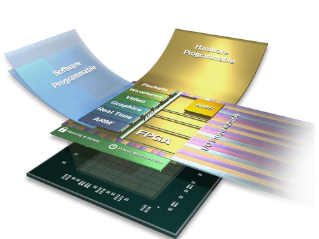

The UltraScale™ MPSoC Architecture is built on TSMC’s 16FinFET+ process technology and enables next-generation Zynq® UltraScale+ MPSoCs. Building on the industry success of the Zynq-7000 All Programmable SoC family, the new UltraScale MPSoC architecture extends Xilinx SoCs to enable true heterogeneous multi-processing with ‘the right engines for the right tasks’ for smarter systems, including:

  • Smarter Control
    • Connected Control/Machine-to-Machine: Flexible/adaptable manufacturing, factory throughput, quality, and safety
  • Smarter Vision
    • Advanced 2D/3D: Evolving video-processing algorithms, object detection, and analytics
  • Smarter Network
    • Wireless Communications: Support for multiple spectral bands, smart antennas
    • Wired Communications: Multiple wired communications standards, context-aware network services
    • Data Centers: Software Defined Networks (SDN), data pre-processing, and analytics

The UltraScale MPSoC architecture provides multiple advanced processors that scale from 32 to 64 bits with support for virtualization. Xilinx has partnered with ARM® to provide the most efficient 64-bit ARMv8 application processors with the Cortex®-A53, real-time, power efficient co-processors with the ARM® Cortex®-R5, and an OpenGL ES 1.1/2.0 compliant ARM® Mali™-400MP multicore GPU to leverage ARM’s leadership in embedded processors and its ecosystem. In addition, the Zynq UltraScale MPSoC includes an H.265/H.264 video codec unit to provide native UltraHD compression and dedicated engines for dynamic power management and security configuration.

To effectively harness the power of the Zynq UltraScale+ MPSoC, Xilinx has the SoC-strength tools with Vivado® Design Suite, Xilinx SDK, and PetaLinux, and can further accelerate development using the SDx™ family of environments for design abstraction.

sdsoc

Architecture’s Essential Elements

  • 64-bit Quadcore ARM Cortex-A53 Processors
  • Dualcore ARM Cortex-R5 Real-Time Processors
  • ARM Mali™-400MP Graphics Processor
  • H.265/264 Video Codec Unit
  • Advanced Dynamic Power Management Unit
  • Configuration Security Unit
  • DDR4/LPDDR4 Memory Interface Support
  • 16FinFET+ Performance/Watt
  • SDSoC Development Environment for Design Abstraction
  • Next-Generation AXI Interconnect
  • Compatible with the Zynq-7000 All Programmable SoCs, Software, and Ecosystem
