Video Surveillance

Differentiated and Customizable Smart Surveillance Platforms from Edge-to-Cloud


Many of the same reasons why Xilinx SoCs and FPGAs are extensively used in the cloud are amplified when similar functions are implemented in surveillance cameras, network video recorders (NVR), digital video recorders (DVR), and video servers. The trend toward smart surveillance systems extending from the cloud to real-world environments, known as the edge, places a higher priority on efficiency in the form of performance/watt and latency from image capture to decision due to volumes, price points, and thermal constraints of edge devices. Neural network-based machine learning inference is rapidly becoming the dominant approach surveillance equipment manufacturers rely upon for differentiation, along with custom image signal processing (ISP). Xilinx offers efficient and scalable customization through:

  • In-house or ecosystem IP support for the latest versions of MIPI, SLVS-EC, LVDS, and other sensor interfaces
  • Ability to build or adapt ISPs for specific use cases and replace them on-the-fly (e.g. HDR, 4K, Infrared, Blacklight, etc.) as conditions change
  • No-charge, optimized OpenCV functions, called xfOpenCV, to implement existing user vision algorithms on ARM processors or FPGA fabric or across both domains
  • Heterogeneous architecture and SDSoC toolflow maximizes performance/watt by offloading or accelerating bottlenecks in processor-only implementations
  • Real-time analytics and machine learning supported by in-house or ecosystem solutions such as PYNQ, DEEPHi, and others
  • Connectivity to storage and network, including support for Time-Sensitive Networking (TSN)
  • IEC 62443 cybersecurity with built-in hardware root-of-trust
  • Integration of control, IEC 61508 SIL 3 functional safety and other functions for vision-guided robotics and non-standalone camera applications

Choose from an extensive assortment of kits from Xilinx and ecosystem partners that best match your needs by selecting the boards and kits button above and filtering by board function.

Design Examples Description Device Support

Click to enlarge

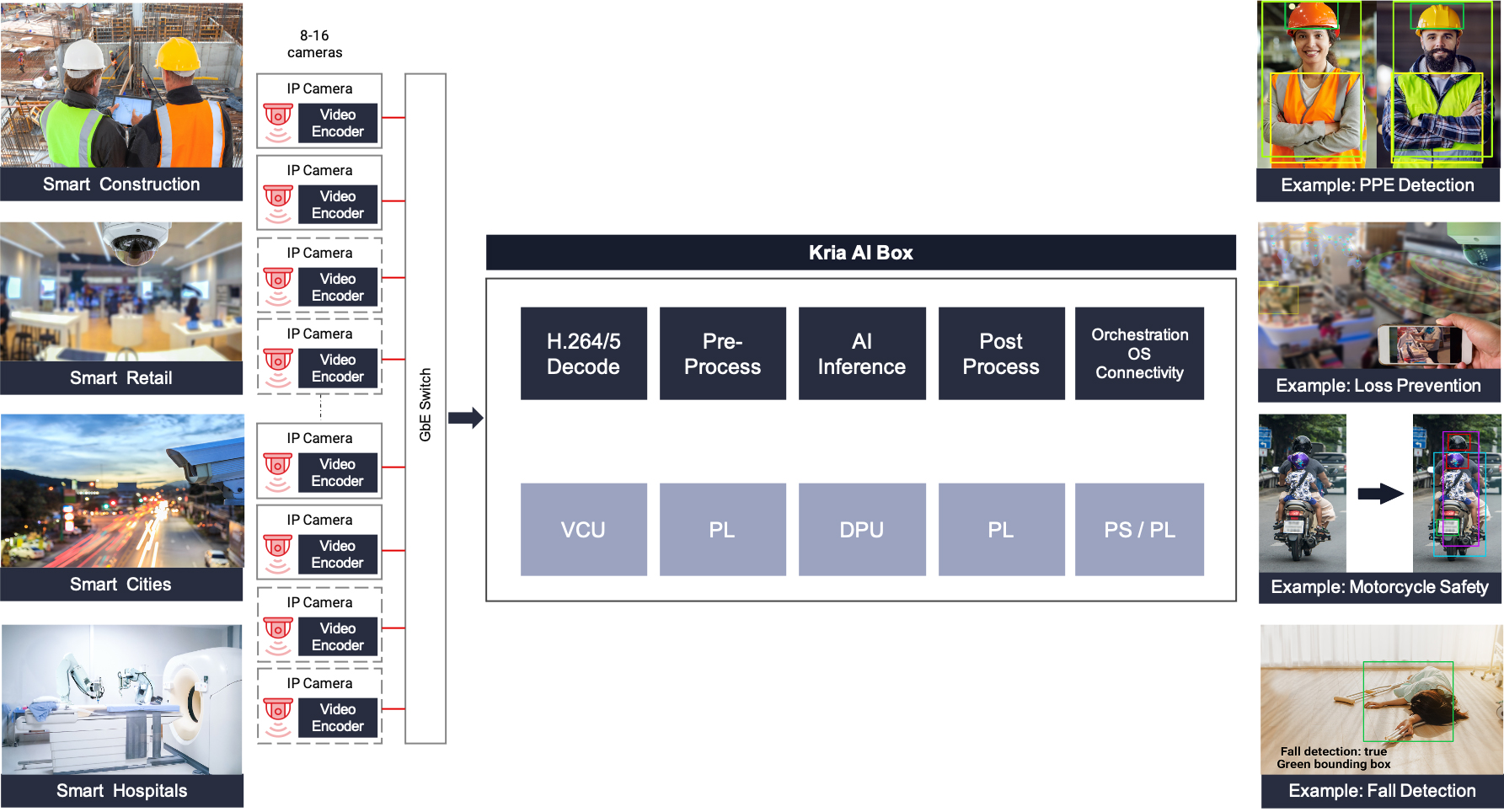

  • ARM Processing System for Network Interface,  Cybersecurity Stack, other common peripherals
  • Programmable Logic for sensor interface, image signal processing pipeline, xNN inference engine
  • Video Codec for simulatenous multi-stream encode/decode
Zynq UltraScale+ EV MPSoC
Solutions Stack

Some Industrial and Healthcare IoT products need all elements of the Xilinx IIoT and HcIoT Solutions Stack, all need some. The Xilinx IIoT and HcIoT Solutions Stack is comprised of optimized Xilinx and Ecosystem building blocks and solutions used across Industrial and Healthcare IoT platforms. Starting from scratch is never something you will have to do with a Xilinx-based Industrial or Healthcare IoT system. Minimize development time and cost and maximize design reuse on your next Industrial or Healthcare IoT platform by exploring the different elements of the Xilinx IIoT and HcIoT Solutions Stack.
